Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

Mounting Type : Fixed installation

Description : Aluminum alloy load cell

Model Number : SC638

Type : Load Cell

Place of Origin : China

Brand Name : SNC

Usage : PRESSURE SENSOR

Theory : Resistance Sensor

Output : Analog SENSOR

Item : load cell 300kg 500kg

Material : aluminum alloy

Capacity : 30 to 500KG

Accuracy class : C3

rated output : 2.0±0.1mV/V

Excitation voltage : 9VDC~12VDC

safe over load : 120% RO

MOQ : 10 units

Price : $20/units

Contact Now

Aluminum single point load cell 300kg 500kg for platform scale

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

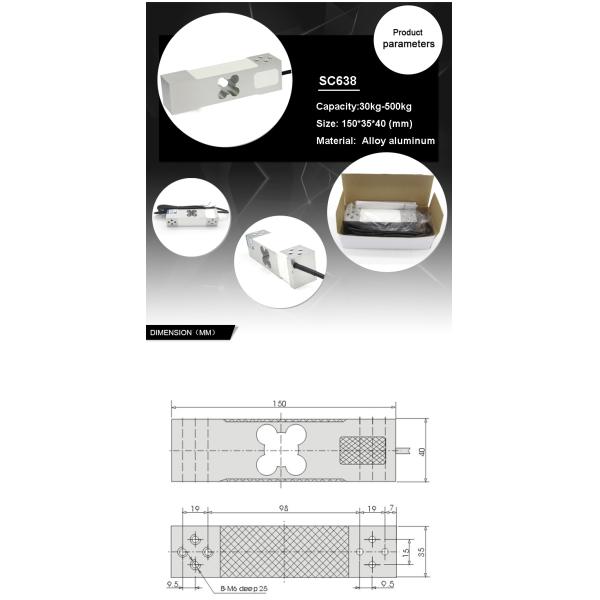

Product Overviews

Features:

Model: SC638

Capacity: 20kg, 30kg, 50kg, 60kg, 100kg, 120kg, 150kg, 200kg, 250kg, 300kg, 350kg

Material: Aluminum alloy

Application: For electronic scale, platform scale and industrial weighing system.

Platform size: 350x450 mm

Counting Scale Type single point load cell 30kg 50kg 60kg 100kg 150kg 200kg 300kg 500kg

Parameters:

Capacity 20kg, 30kg, 50kg, 60kg, 100kg,120kg, 150kg, 200kg, 250kg, 300kg, 350kg
Accuracy 0.03% F.S
Rated Output 2.0±10%mV/V
Non-linearity 0.02% F.S
Hysteresis 0.02% F.S
Repeatability 0.02% F.S
Creep (30 min) 0.03% F.S
Zero Balance ± 2% F.S
Temp. Effect on Zero 0.025%F.S/10℃
Temp. Effect on Output 0.025%F.S/10℃
Input Resistance 410±15 Ω
Output Resistance 350±3 Ω
Insulation Resistance ≥2000MΩ/50VDC
Excitation Voltage 10V
Maximum Excitation 15V
Compensated temperature range -10~40℃
Operating temperature range -20~60℃
Safe overload 150%
Ultimate overload 200%F.S
Cable size Φ5x2000mm
Protection Grade IP65
Wiring Input: Red + Black -
Output: Green + White -

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

Related Products

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy
Product Uses

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

Accessories

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

Company Information

Sensor and Control Co., Ltd. was founded in 2006, mainly engaged in Torque Sensor, Load Cell, Pressure Transducer, Strain Gauges and Weighing Indicators. Since establishment, we insist the guidelines of "Customer Oriented, Quality Focused, Professional Service "All products we supply are environment friendly and has passed RoHS test.

Sensorcon, in accordance with the principle of the introduction of advanced professional ultrasonic gas cleaning, clean Room patches, automatic temperature compensation and detection, high and low temperature testing and thermal experiments, laser welding and printing, CAD design, manufacturing and testing sensor test equipment and production technology ,manufacture all varieties of sensors, high precision, stable performance and also has antiseptic, waterproof, anti-explosion, anti-lightning, etc favored deeply by users.

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

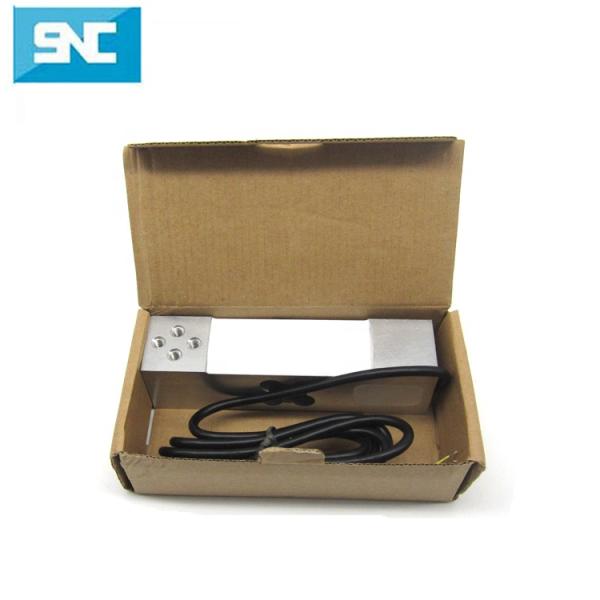

Packaging & Shipping

Aluminum Single Point Load Cell 300kg 500kg for Platform Scale Safe Over Load 120% RO Description Aluminum Alloy

FAQ

1.How to place an order ?
Please provide us more details of what you want, such as: application, measurement range, output, accuracy, thread type, electric connector and other related parameters.

2.Does SNCoffer any discount ?
Yes, if you buy large QTY, please contact us, we will give you a big discount.

3.What terms of payment are available ?
We accept T/T, L/C, Trade assurance, Western Union, Paypal, etc.

4.When will you arrange the production ?
We will arrange the production immediately after receiving your payment.

5.How do you ensure good product quality ?
We have a complete quality control system, all of our products are fully checked by IQC, OQC departments

before shipping to our clients.

6.Do you have warranty ?
Yes, we provide 1 year warranty for most of our products. Some products we offer 15month to 24 months warranty.
